Slöngutengi CAT flansar

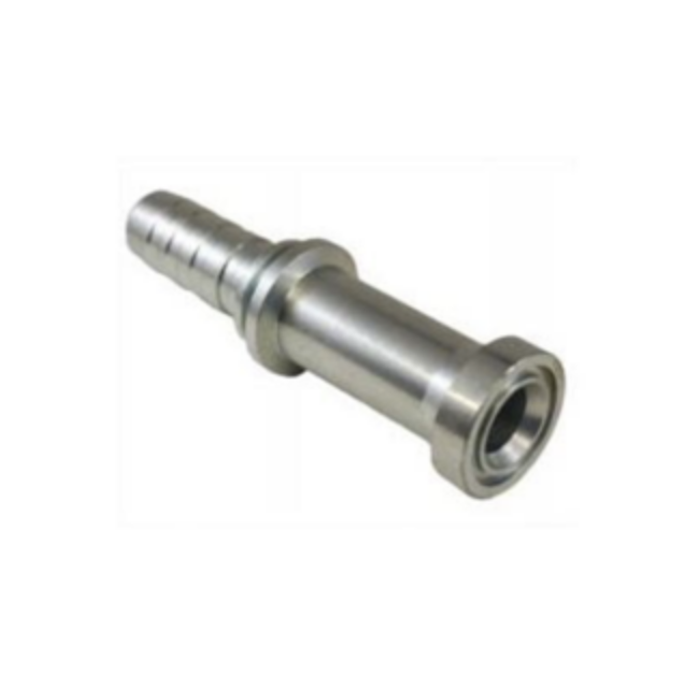

Slöngutengi með Caterpillar flönsum.

Með Caterpillar flönsum þarf að nota viðeigandi prófílhring til þéttingar.

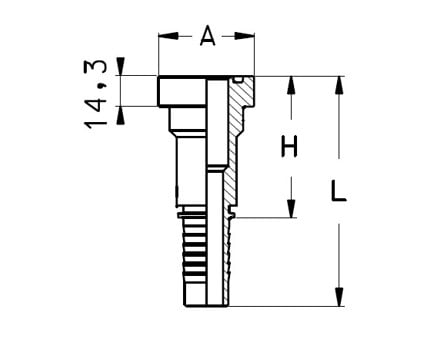

Vöruheiti	Slöngustærð "	Flans	H mm	L mm	A mm	Vinnuþrýstingur BAR	Vörunúmer
Beinn Caterpillar flans	3/4	3/4	65.5	106	41.3	350	56911212
Beinn Caterpillar flans	3/4	1	67.5	108	47.6	350	56911612
Beinn Caterpillar flans	1	1	72	123	47.6	280	56911616
Beinn Caterpillar flans	1	1 1/4	74.5	129.5	54	280	56912016
Beinn Caterpillar flans	1 1/4	1 1/4	75	133	54	210	56912020
Beinn Caterpillar flans	1 1/4	1 1/2	82	143	63.5	210	56912420
Beinn Caterpillar flans	1 1/2	1 1/2	83	153	63.5	185	56912424
