Hné, EVW 90° - galvaníseruð.png

Hné, EVW 90° - galvaníseruð

Galvaniseraður skerkónafittings fyrir háþrýstar vökvalagnir

Flokkar: Fittings, Lagnaefni, Skerkóna fittings, Stálfittings Brand: Parker

Available Options

Vörunúmer	Vöruheiti	Verð	Magn
14158041	EVW 6L
14158091	EVW 8L
14158141	EVW 10L
14158191	EVW 12L
14158241	EVW 15L
14158291	EVW 18L
14158341	EVW 22L
14158391	EVW 28L
14158441	EVW 35L
14158491	EVW 42L
14158541	EVW 6S
14158591	EVW 8S
14158641	EVW 10S
14158691	EVW 12S
14158741	EVW 14S
14158791	EVW 16S
14158841	EVW 20S
14158891	EVW 25S
14158941	EVW 30S
14158991	EVW 38S

Lýsing

Breyta

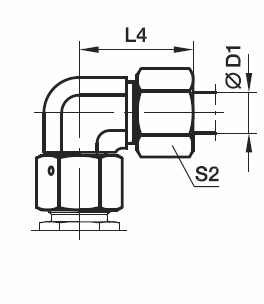

Vöruheiti	Röramál D1 mm	Gegnum borun D3 mm	Hæð L1 mm	Hæð L2 mm	Hæð L3 mm	Hæð L4 mm	Lykilmál S1	Lykilmál S2	Þrýstiþol BAR	Vörunúmer
Gerð – L
EVW 6L	6	4	19	12	26	27	12	14	500	14158041
EVW 8L	8	6	21	14	27.5	29	12	17	500	14158091
EVW 10L	10	8	22	15	29	30	14	19	500	14158141
EVW 12L	12	10	24	17	29.5	32	17	22	400	14158191
EVW 15L	15	12	28	21	32.5	36	19	27	400	14158241
EVW 18L	18	15	31	23.5	35.5	40	24	32	400	14158291
EVW 22L	22	19	35	27.5	38.5	44	27	36	250	14158341
EVW 28L	28	24	38	30.5	41.5	47	36	41	250	14158391
EVW 35L	35	30	45	34.5	51	56	41	50	250	14158441
EVW 42L	42	36	51	40	56	63	50	60	250	14158491
Gerð – S
EVW 6S	6	4	23	16	27	31	12	17	800	14158541
EVW 8S	8	5	24	17	27.5	32	14	19	800	14158591
EVW 10S	10	6	25	17.5	30	34	17	22	800	14158641
EVW 12S	12	8	29	21.5	31	38	17	24	630	14158691
EVW 14S	14	9	30	22	35	40	19	27	630	14158741
EVW 16S	16	12	33	24.5	36.5	43	24	30	630	14158791
EVW 20S	20	16	37	26.5	44.5	48	27	36	420	14158841
EVW 25S	25	20	42	30	50	54	36	46	420	14158891
EVW 30S	30	25	49	35.5	55	62	41	50	420	14158941
EVW 38S	38	32	57	41	63	72	50	60	420	14158991
